Aluminum Twin Ramps

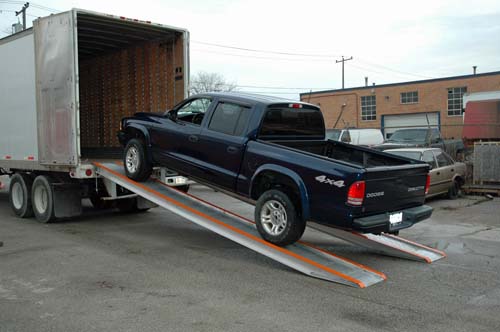

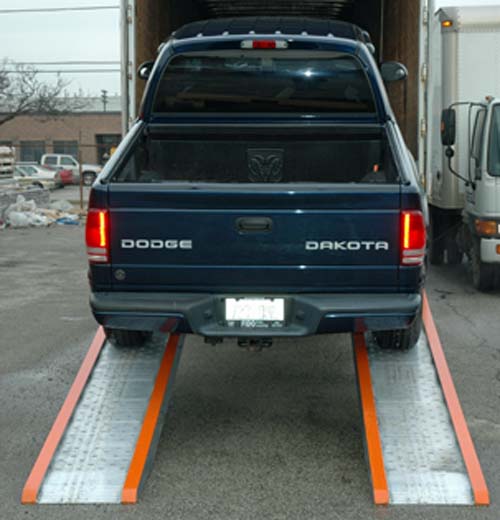

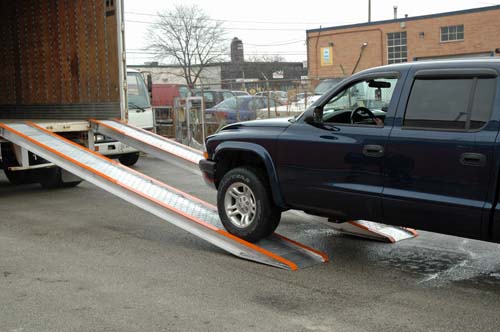

Quality Loading Equipment aluminum Twin Ramps are built tough and designed for quick and easy installation, when driving vehicles from ground level to an elevated building or trailer entrance.

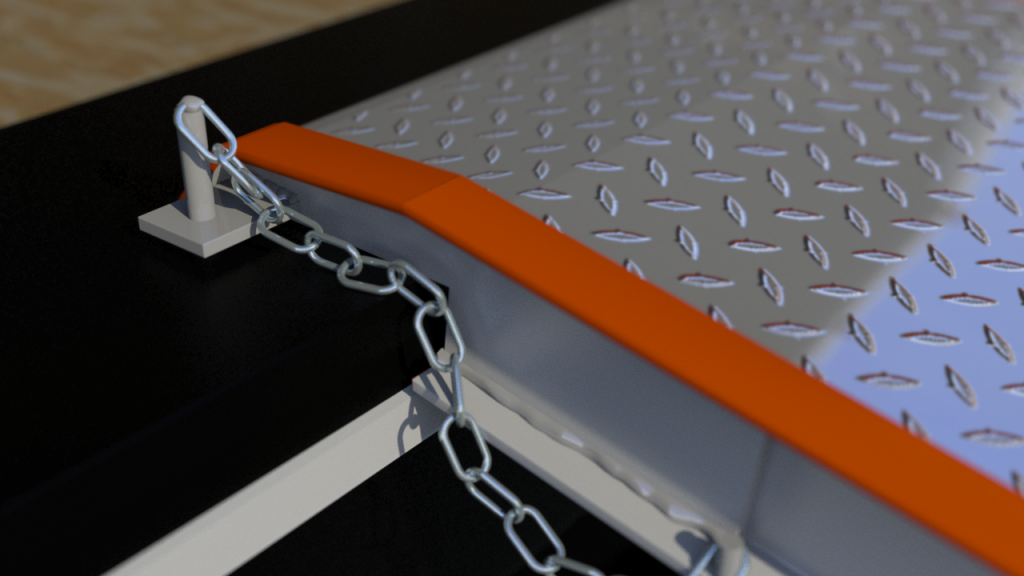

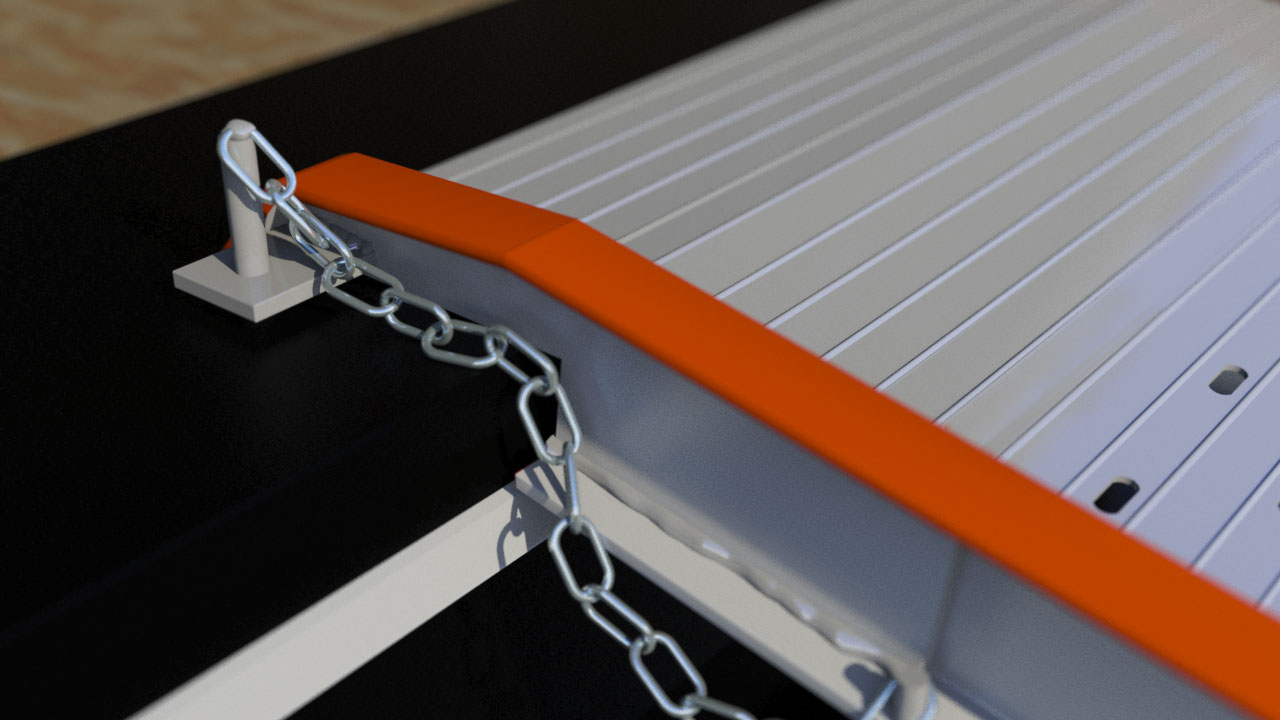

Our ramps can be secured by using the apron mount pins in to holes pre-drilled on to your elevated truck or dock. Our Twin Ramps are available in our diamond pattern aluminum tread plate design, or our anti-skid traction grip with water drainage slots.
For more information on our selection of twin ramps and material handling equipment: Contact us at 416-743-4581.
Interested in this product?
| Model Number | Load Capacity | Height Maximum 11 Degree Incline | Height Minimum | Width Overall | Width Inside Curbs | Length | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | kg | in | cm | in | cm | in | cm | in | cm | ft | m | lb | kg | |
| ATWR 7-14-8 | 7000 | 3175 | 17.5 | 44.5 | 12.5 | 31.8 | 19 | 48.3 | 15 | 38.1 | 8 | 2.44 | 52 | 23.6 |
| ATWR 5.5-14-10 | 5000 | 2495 | 22.5 | 57.2 | 16 | 40.6 | 19 | 48.3 | 15 | 38.1 | 10 | 3.05 | 64 | 29 |
| ATWR 7-14-12 | 7000 | 3175 | 27 | 68.6 | 19 | 48.3 | 19 | 48.3 | 15 | 38.1 | 12 | 3.66 | 105 | 47.6 |
| ATWR 6-14-14 | 6000 | 2722 | 32 | 81.3 | 22.5 | 57.2 | 19 | 48.3 | 15 | 38.1 | 14 | 4.27 | 120 | 54.4 |
| ATWR 5.5-14-16 | 5500 | 2495 | 36.5 | 92.7 | 25.5 | 64..8 | 19 | 48.3 | 15 | 38.1 | 16 | 4.88 | 138 | 62.6 |
| ATWR 6-14-18 | 6000 | 2722 | 41 | 104.1 | 29 | 73.7 | 20 | 50.8 | 15 | 38.1 | 18 | 5.49 | 170 | 77.1 |
| ATWR 5.5-14-20 | 5500 | 2495 | 46 | 116.8 | 32.5 | 82.6 | 20 | 50.8 | 15 | 38.1 | 20 | 6.1 | 190 | 86.2 |
| ATWR 5.5-14-24 | 5500 | 2495 | 55.5 | 141 | 39 | 99.1 | 20 | 50.8 | 15 | 38.1 | 24 | 7.32 | 250 | 113.4 |
| Model Number | Load Capacity | Height Maximum 11 Degree Incline | Height Minimum | Width Overall | Width Inside Curbs | Length | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | kg | in | cm | in | cm | in | cm | in | cm | ft | m | lb | kg | |
| ATWR 7-14-8 | 7000 | 3175 | 17.5 | 44.5 | 12.5 | 31.8 | 18 | 45.7 | 14 | 35.6 | 8 | 2.44 | 52 | 23.6 |
| ATWR 5.5-14-10 | 5500 | 2495 | 22.5 | 57.2 | 16 | 40.6 | 18 | 45.7 | 14 | 35.6 | 10 | 3.05 | 64 | 29 |
| ATWR 7-14-12 | 7000 | 3175 | 27 | 68.6 | 19 | 48.3 | 18 | 45.7 | 14 | 35.6 | 12 | 3.66 | 105 | 47.6 |
| ATWR 6-14-14 | 6000 | 2722 | 32 | 81.3 | 22.5 | 57.2 | 18 | 45.7 | 14 | 35.6 | 14 | 4.27 | 120 | 54.4 |
| ATWR 5.5-14-16 | 5500 | 2495 | 36.5 | 92.7 | 25.5 | 64.8 | 18 | 45.7 | 14 | 35.6 | 16 | 4.88 | 138 | 62.6 |
| ATWR 6-14-18 | 6000 | 2722 | 41 | 104.1 | 29 | 73.7 | 19 | 48.3 | 14 | 35.6 | 18 | 5.49 | 170 | 77.1 |
| ATWR 5.5-14-20 | 5500 | 2495 | 46 | 116.8 | 32.5 | 82.6 | 19 | 48.3 | 14 | 35.6 | 20 | 6.1 | 190 | 86.2 |
| ATWR 5.5-14-24 | 5500 | 2495 | 55.5 | 141 | 39 | 99.1 | 19 | 48.3 | 14 | 35.6 | 24 | 7.32 | 250 | 113.4 |
