Aluminum Slider Ramps

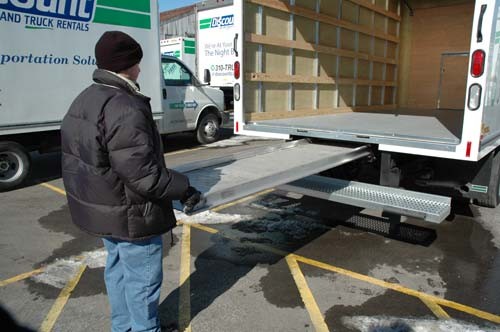

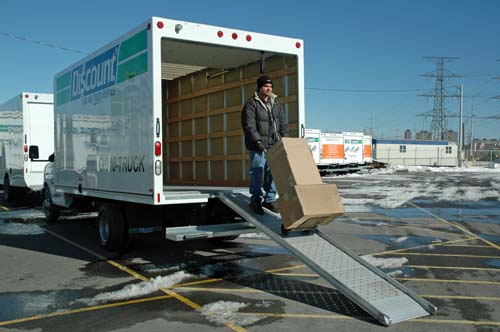

When it comes to high volume delivery trucks, or everyday cube van installation trucks, there is no doubt, the most important and relied upon piece of equipment is your truck slider ramp. At Quality Loading Equipment, we understand that need for a solid, safe, and well built ramp. Our goal, is to ensure every time our ramps are used, you will have maximum traction and stability keeping cargo and yourself safe.
With a variety of widths and lengths to suite your truck height, material handling equipment used and capacity requirement, Quality Loading Equipment will find the appropriate slider ramp model to suite your needs.
With a few basic measurements taken from your carrier frame under the box of the truck, we can determine the maximum length and width your truck is able to accommodate.
Interested in this product?
Industry leading perforated traction grip aluminum deck, that allows for proper drainage of water for a safe, non-slip surface.

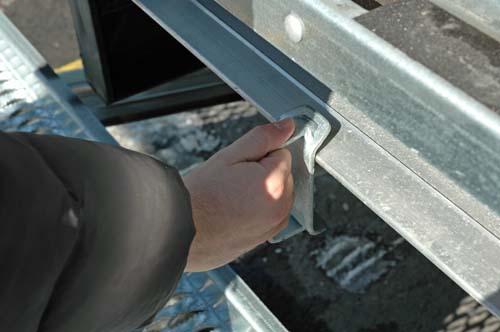

Features an industry best spring loaded storage latch handle, to ensure your ramp is safely stowed away when not in use

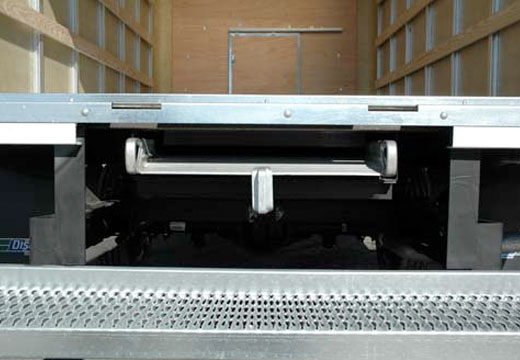

Anti-theft plate ensures ramps cannot be easily removed or stolen from carrier housing when not in use.
| Model Number | Carrier Overall Width | Carrier Height | Ramp Rail Height | Height | Min. Clearance Req. Between "U" Boats | Spacing of Hooks C to C | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | cm | in | cm | in | cm | in | cm | in | cm | in | cm | |
| 240 | 25 | 63.5 | 5 3/8 | 13.7 | 3 1/2 | 8.9 | 2 1/2 | 6.4 | 25 1/4 | 64.1 | 19 | 48.3 |
| 260 | 27 | 68.6 | 5 3/8 | 13.7 | 3 1/2 | 8.9 | 2 1/2 | 6.4 | 27 | 68.6 | 21 | 53.3 |
| 320 | 33 | 83.8 | 5 3/8 | 6.4 | 3 1/2 | 8.9 | 2 1/2 | 6.4 | 33 1/4 | 84.5 | 27 | 68.6 |
| Model Number | Load Capacity | Ramp Overall Width | Ramp Inside Width | Ramp Length | Carrier Length | Complete Unit Shipping Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb | kg | in | cm | in | cm | ft | m | in | cm | lb | kg | |
| Model 240 | ||||||||||||
| ASR24-C25-1.7-10 | 1700 | 771 | 24 | 61 | 22 | 55.9 | 10 | 3.05 | 136 | 345.4 | 198 | 89.8 |
| ASR24-C25-1.5-12 | 1500 | 680 | 24 | 61 | 22 | 55.9 | 12 | 3.66 | 160 | 406.4 | 228 | 103.4 |
| ASR24-C25-1.3-14 | 1300 | 590 | 24 | 61 | 22 | 55.9 | 14 | 4.27 | 184 | 467.4 | 252 | 114.3 |
| ASR24-C25-1.0-16 | 1000 | 454 | 24 | 61 | 22 | 55.9 | 16 | 4.88 | 208 | 528.3 | 292 | 132.5 |
| Model 260 | ||||||||||||
| ASR26-C27-1.7-10 | 1700 | 771 | 26 | 66 | 24 | 61 | 10 | 3.05 | 136 | 345.4 | 203 | 92.1 |
| ASR26-C27-1.5-12 | 1500 | 680 | 26 | 66 | 24 | 61 | 12 | 3.66 | 160 | 406.4 | 235 | 106.6 |
| ASR26-C27-1.3-14 | 1300 | 590 | 26 | 66 | 24 | 61 | 14 | 4.27 | 184 | 467.4 | 264 | 119.8 |
| ASR26-C27-1.0-16 | 1000 | 454 | 26 | 66 | 24 | 61 | 16 | 4.88 | 208 | 528.3 | 308 | 139.7 |
| Model 320 | ||||||||||||
| ASR32-C33-1.7-10 | 1700 | 771 | 32 | 81.3 | 30 | 76.2 | 10 | 3.05 | 136 | 345.4 | 226 | 102.5 |
| ASR32-C33-1.5-12 | 1500 | 680 | 32 | 81.3 | 30 | 76.2 | 12 | 3.66 | 160 | 406.4 | 248 | 112.5 |
| ASR32-C33-1.3-14 | 1300 | 590 | 32 | 81.3 | 30 | 76.2 | 14 | 4.27 | 184 | 467.4 | 298 | 135.2 |
| ASR32-C33-1.0-16 | 1000 | 454 | 32 | 81.3 | 30 | 76.2 | 16 | 4.88 | 208 | 528.3 | 336 | 152.4 |
| Model Number | Load Capacity | Ramp Overall Width | Ramp Inside Width | Ramp Length | Ramp Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| lb | kg | in | cm | in | cm | ft | m | lb | kg | |
| Model 240 | ||||||||||
| ASR24-1.7-10 | 1700 | 771 | 24 | 61 | 22 | 55.9 | 10 | 3.05 | 90 | 40.8 |
| ASR24-1.5-12 | 1500 | 680 | 24 | 61 | 22 | 55.9 | 12 | 3.66 | 108 | 49 |
| ASR24-1.3-14 | 1300 | 590 | 24 | 61 | 22 | 55.9 | 14 | 4.27 | 126 | 57.2 |
| ASR24-1.0-16 | 1000 | 454 | 24 | 61 | 22 | 55.9 | 16 | 4.88 | 144 | 65.3 |
| Model 260 | ||||||||||
| ASR26-1.7-10 | 1700 | 771 | 26 | 66 | 24 | 61 | 10 | 3.05 | 95 | 43.1 |
| ASR26-1.5-12 | 1500 | 680 | 26 | 66 | 24 | 61 | 12 | 3.66 | 114 | 51.7 |
| ASR26-1.3-14 | 1300 | 590 | 26 | 66 | 24 | 61 | 14 | 4.27 | 133 | 60.3 |
| ASR26-1.0-16 | 1000 | 454 | 26 | 66 | 24 | 61 | 16 | 4.88 | 152 | 68.9 |
| Model 320 | ||||||||||
| ASR32-1.7-10 | 1700 | 771 | 32 | 81.3 | 30 | 76.2 | 10 | 3.05 | 110 | 49.9 |
| ASR32-1.5-12 | 1500 | 680 | 32 | 81.3 | 30 | 76.2 | 12 | 3.66 | 132 | 59.9 |
| ASR32-1.3-14 | 1300 | 590 | 32 | 81.3 | 30 | 76.2 | 14 | 4.27 | 153 | 69.4 |
| ASR32-1.0-16 | 1000 | 454 | 32 | 81.3 | 30 | 76.2 | 16 | 4.88 | 175 | 79.4 |
